AMS-871

Motorized

Cellular Shades

Applications:
Cellular (honecomb) shade for living quarters and other passenger areas, providing privacy and comfort during day or night time. Extremely efficient as insulation against heat or cold.

Description:

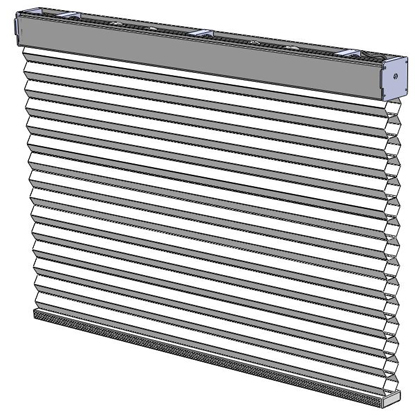

Electrically operated cellular shade powered by an internal DC tubular motor, featuring 25mm wide single cell honeycomb fabric. Available with hand-held remote transmitter for total comfort, hard-to-reach areas and for people with disabilities.

Specifications:

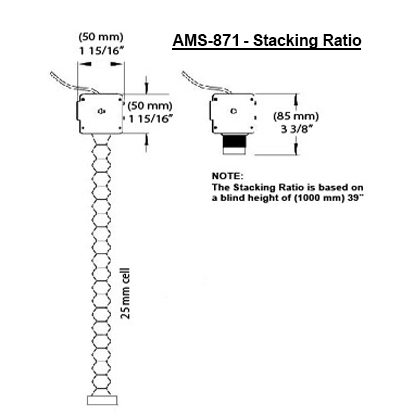

  • Aluminum housing to accommodate motor and all mechanical parts, dimmension 48mm (1 7/8") wide x 50mm (2") high, available in powder-coated white or black colour.

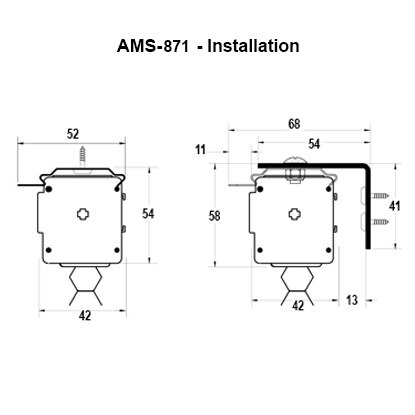

  • Steel click-in brackets for ceiling mount, placed 20-30" o.c.; attached to galvanized or black powder-coated steel L-Brackets when wall mounting.
  • Extruded aluminum fabric-roll-up tube, made of 6063-T5 alloy.
  • Nylon cord reels providing consistant rising and lowering of shade.
  • Electric 25mm (1") tubular motor with mechanical adjustable end limits and integrated motor cables with Molex connectors. Available in 12 Volt (10 Watts/0.9 Amps/1 Nm/30 RPM) or optional 24 Volt (10 Watts/0.9 Amps/1 Nm/30 RPM).
  • Optional RF remote transmitter for individual and/or group control.
  • Powder-coated black or white aluminum weight bar with matching end caps.
  • Woven polyester 25mm honeycomb privacy fabric with interior insulation coating. Meets FMVSS-302 flammabillity standards.
  • Size Limitations:
    - Min. width: 356mm (14")
    - Max. width: 2440mm (96")
    - Max. recommended shade surface: 3.70m2 (40 ft2)

Specifications

  • Aluminum housing to accommodate motor and all mechanical parts, dimmension 48mm
    (1 7/8") wide x 50mm (2") high, available in powder-coated white or black colour.
  • Steel click-in brackets for ceiling mount, placed 20-30" o.c.; attached to galvanized or black powder-coated steel L-Brackets when wall mounting.
  • Extruded aluminum fabric-roll-up tube, made of 6063-T5 alloy.
  • Nylon cord reels providing consistant rising and lowering of shade.
  • Electric 25mm (1") tubular motor with mechanical adjustable end limits and integrated motor cables with Molex connectors. Available in 12 Volt (10 Watts/0.9 Amps/1 Nm/30 RPM) or optional 24 Volt (10 Watts/0.9 Amps/1 Nm/30 RPM).
  • Optional RF remote transmitter for individual and/or group control.
  • Powder-coated black or white aluminum weight bar with matching end caps.
  • Woven polyester 25mm honeycomb privacy fabric with interior insulation coating. Meets FMVSS-302 flammabillity standards.
  • Size Limitations:
    - Min. width: 356mm (14")
    - Max. width: 2440mm (96")
    - Max. recommended shade surface: 3.70m2 (40 ft2)
