Applications:
Cellular (honecomb) shade for living quarters and other passenger areas, providing privacy and comfort during day or night time. Extremely efficient as insulation against heat or cold.
Description:

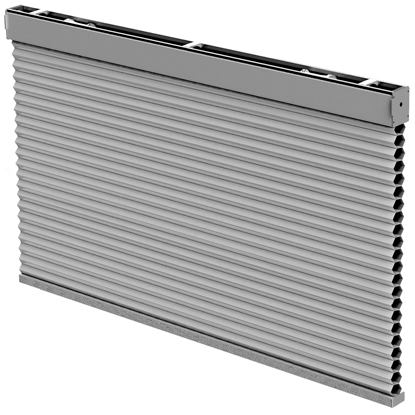

Electrically operated cellular shade powered by an internal DC tubular motor, featuring 38mm wide single cell honeycomb fabric. Available with hand-held remote transmitter for total comfort, hard-to-reach areas and for people with disabilities.
Specifications:
- Aluminum housing to accommodate motor and all mechanical parts, dimmension 48mm (1 7/8") wide x 50mm (2") high, available in powder-coated white or black colour.

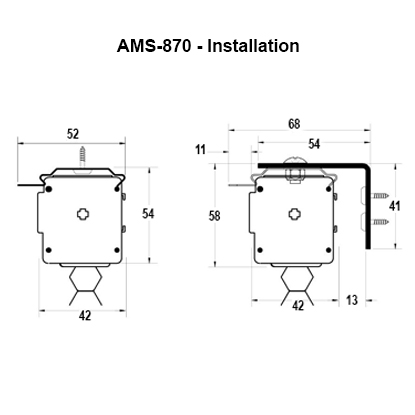

- Steel click-in brackets for ceiling mount, placed 20-30" o.c.; attached to galvanized or black powder-coated steel L-Brackets when wall mounting.
- Extruded aluminum fabric-roll-up tube, made of 6063-T5 alloy.
- Nylon cord reels providing consistant rising and lowering of shade.
- Electric 25mm (1") tubular motor with mechanical adjustable end limits and integrated motor cables with Molex connectors. Available in 12 Volt (10 Watts/0.9 Amps/1 Nm/30 RPM) or optional 24 Volt (10 Watts/0.9 Amps/1 Nm/30 RPM).
- Optional RF remote transmitter for individual and/or group control.
- Powder-coated black or white aluminum weight bar with matching end caps.
- Woven polyester 38mm honeycomb privacy fabric with interior insulation coating.
Meets FMVSS-302 flammabillity standards.
- Size Limitations:
- Min. width: 356mm (14")
- Max. width: 2440mm (96")
- Max. recommended shade surface: 3.70m2 (40 ft2)
