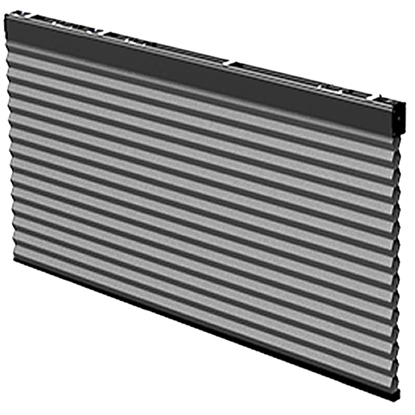

AMS-875
Motorized
Cellular Shades
Applications:
Cellular (honeycomb) shade for passenger areas, providing privacy and comfort during day or night time. Extremely efficient insulation against heat or cold.
Description:
Description:
Electrically operated cellular shade powered by an internal DC double-shafted motor, featuring 25mm wide single cell honeycomb fabric. Available with hand-held remote transmitter for total comfort, hard-to-reach areas and for people with disabilities.
Specifications:
Specifications:
-

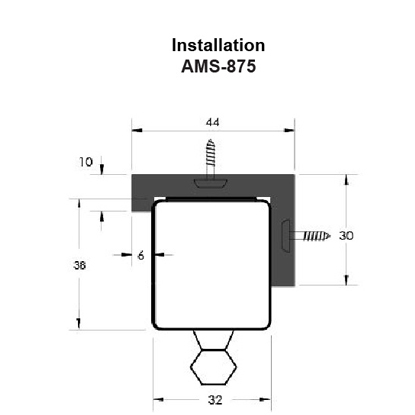

Small aluminum housing to accommodate motor and all mechanical parts, dimmension 32mm (1 1/4") wide x 38mm (1 1/2") high, available in powder-coated white or black colour.
-
Steel click-in brackets for ceiling mount, placed 20-30" o.c.; attached to galvanized or black powder-coated steel L-Brackets when wall mounting.
-
Extruded aluminum drive shaft, made of 6063-T6 alloy.
-
Nylon cord reels providing consistant rising and lowering of shade.
-
Electric 25mm (1") double-shafted motor with mechanical adjustable end limits and integrated motor cables with Molex connectors. Available in 12 Volt (12 Watts/1.0 Amps/0.8 Nm/40 RPM) or optional 24 Volt upon request.
-
Optional RF remote transmitter for individual and/or group control.
-
Powder-coated black or white aluminum weight bar with matching end caps.
-
Woven polyester 25mm honeycomb privacy fabric with interior insulation coating. Meets FMVSS-302 flammabillity standards.
-
Size Limitations:
- Min. width: 610mm (44")
- Max. width: 1830mm (72")
- Max. recommended shade surface: 2.25m2 (24 ft2)
Thank you for reaching out
At vero eos et accusamus et iusto odio dignissimos ducimus qui blanditiis praesentium voluptatum deleniti atque corrupti quos dolores et quas molestias excepturi sint occaecati cupiditate non provident, similique sunt in culpa qui officia deserunt mollitia animi, id est laborum et.
- Small aluminum housing to accommodate motor and all mechanical parts, dimmension 32mm (1 1/4") wide x 38mm (1 1/2") high, available in powder-coated white or black colour.
- Steel click-in brackets for ceiling mount, placed 20-30" o.c.; attached to galvanized or black powder-coated steel L-Brackets when wall mounting.
- Extruded aluminum drive shaft, made of 6063-T6 alloy.
- Nylon cord reels providing consistant rising and lowering of shade.
- Electric 25mm (1") double-shafted motor with mechanical adjustable end limits and integrated motor cables with Molex connectors. Available in 12 Volt (12 Watts/1.0 Amps/0.8 Nm/40 RPM) or optional 24 Volt upon request.
- Optional RF remote transmitter for individual and/or group control.
- Powder-coated black or white aluminum weight bar with matching end caps.
- Woven polyester 25mm honeycomb privacy fabric with interior insulation coating. Meets FMVSS-302 flammabillity standards.
- Size Limitations:
- Min. width: 610mm (44")
- Max. width: 1830mm (72")
- Max. recommended shade surface: 2.25m2 (24 ft2)
