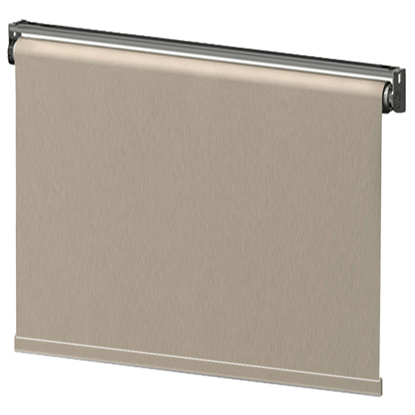

SRS-505CE

Manual

Single Roller Shades

Applications:
Single roller shade to provide sun protection or privacy when manual ease of operation is desired.

Description:
Slow-rise, spring operated single roller shade with easily adjustable upper end position and shade speed for a controlled ascent.

Special Features:
Trapezoid Version
  • Available in a trapezoid shaped version for angled cockpit windows.
  • Side Guide System (Tracker) to stabilize the movement of the hem bar while moving.
  • This system is also available with side channels, custom fitted for various applications.
Specifications:
  • Aluminum mounting rail, dimmension 40.5mm (1 5/8") wide x 8.4mm (5/16") high in standard mill finish or optional black powder-coated.
  • Steel snap-in fastening brackets placed 20-30" o.c.
  • Black powder-coated solid steel side-mounting brackets with two external wheels in black delrin for adjusting of upper end-position as well as spring tension to regulate ascent speed.
  • Extruded aluminum fabric-roll-up tube, made of 6063-T5 alloy.
  • Powder-coated black or beige aluminum pull bar with matching end caps.
  • Internal spring system with multi-position rotary clutch and decelerator mechanism.
  • Internal limiter mechanism for upper shade position setting.
  • Woven polyester sun-blocking screen or blackout privacy fabric. Meets FMVSS-302 flammabillity standards.



Specifications

  • Aluminum mounting rail, dimmension 40.5mm (1 5/8") wide x 8.4mm (5/16") high in standard mill finish or optional black powder-coated.
  • Steel snap-in fastening brackets placed 20-30" o.c.
  • Black powder-coated solid steel side-mounting brackets with two external wheels in black delrin for adjusting of upper end-position as well as spring tension to regulate ascent speed.
  • Extruded aluminum fabric-roll-up tube, made of 6063-T5 alloy.
  • Powder-coated black or beige aluminum pull bar with matching end caps.
  • Internal spring system with multi-position rotary clutch and decelerator mechanism.
  • Internal limiter mechanism for upper shade position setting.
  • Woven polyester sun-blocking screen or blackout privacy fabric. Meets FMVSS-302 flammabillity standards.
