SRS-560

Motorized

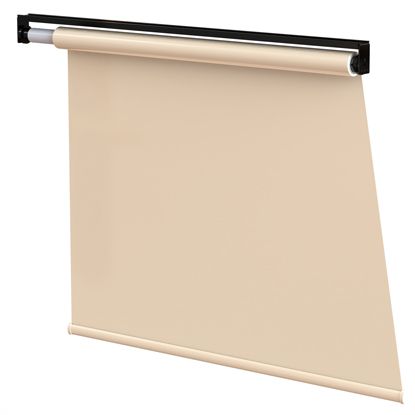

Single Roller Shades

Applications:
Single roller shade to provide sun protection or privacy with the push of a button for A-frame/angled front driver zone windows.

Description:
Electrically operated single roller shade with integrated DC tubular motor. Available with optional ignition-lock motor for added safety, which will be standard when sold with hand-held remote control for people with disabilities.

Applications

Coaches

Municipalities, bus, and tour operators opt for AMS shades in pursuit of comfort, practicality, sun protection, and glare prevention.

Learn More

Limousines & Mini Buses

AMS's luxury sunshades for VIP limousines and mini-buses are the most sought-after solution in this segment.

Learn More

Specifications

  • Aluminum mounting rail, dimmension 40.5mm (1 5/8") wide x 8.4mm (5/16") high in standard mill finish or optional black powder-coated.
  • Steel snap-in fastening brackets placed 20-30" o.c.
  • Black powder-coated solid steel side-mounting brackets.
  • Extruded aluminum fabric-roll-up tube, made of 6063-T5 alloy.
  • Electric 25mm (1") tubular motor with mechanical adjustable end limits and integrated motor cables with Molex connectors. Available in 12 Volt (10 Watts/0.9 Amps/1 Nm/30 RPM) or optional 24 Volt (10 Watts/0.9 Amps/1 Nm/30 RPM).
  • Powder-coated black or beige aluminum weight bar with matching end caps.
  • Woven polyester sun-blocking screen or blackout privacy fabric. Meets FMVSS-302 flammabillity standards.
I want to thank AMS for the OUTSTANDING customer service you recently provided to me. I attempted to install a window blind motor and ran into problems and called for help. Fortunately for me I spoke with Ewa Zajch who determined I was missing a needed module. She emailed me a description of the module, part numbers and copies of instructions to install it. After obtaining the module, I was unable to figure out how to set the limits of the window blind movement. Once again good fortune shined on me when I contacted Cindy Jardine. Cindy followed up Ewa’s effort by sending me additional printed instructions, your web site with all your publications, and her personal instructions on how to fix my problem.

In my last email to Cindy, I told her I still couldn’t set the blind movement limits. To my surprise a Technician (I don’t recall his name, but there must be a record of his call) called me and personally walked me through the procedures.

Throughout all of this I was and am still now overwhelmed with the personal attention I was given and the professionalism and sympathetic attitudes of these fine people. You must be very proud of them because I’m guessing I am not the first person who has complemented them.

I am very grateful for the assistance each provided me. I hope there is some way that you can reward these fine people for their outstanding work.

Dennis Campbell

Frequently Asked Questions

See all Frequently Asked Questions

No, but you can contact us via our website at no cost.

The part number is indicated on a label on top of the shade enclosure. Part numbers are not shown on shades without enclosures.
Fabric samples can be obtained from your local dealer or directly from the AMS customer service department either by phone or by email via our website.
