Applications:
Double roller system for front windshield that provide, at the push of a button, sun and glare control during day time as well as privacy and comfort during night time.
Description:

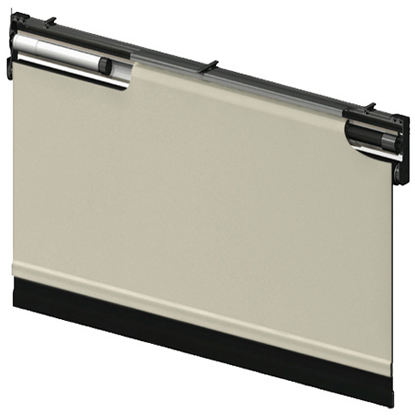

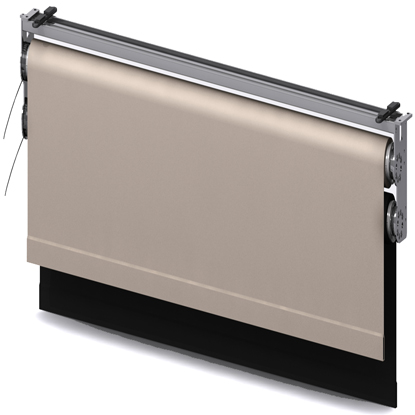

Electrically operated double roller shade system with integrated mechanical DC tubular motors. Available with optional electronic ignition-lock motors for added safety. Can be supplied with hand-held remote transmitter for people with disabilities, in which case ignition-lock motors will be standard.
Specifications:
-

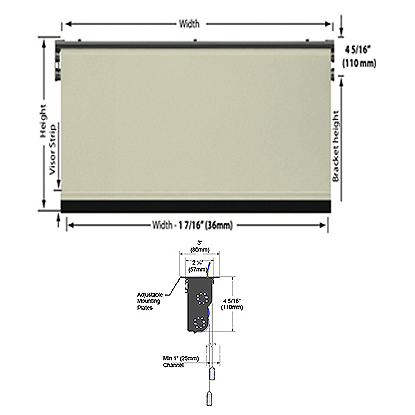

Extra-sturdy powder-coated black aluminum mounting rail, dimmension 57mm (2 1/4") wide x 28mm (1 1/8") high, providing deflection-free mounting of shade system.
-
Black powder-coated steel fastening cross brackets placed 20-30" o.c., allowing for two mounting screws each.
-
Black powder-coated solid steel side-mounting brackets, providing extra safety hold.
-
Extruded aluminum fabric-roll-up tubes, made of 6063-T5 alloy.
-
Electric 25mm (1") tubular motors with mechanical adjustable end limits and integrated motor cables with Molex connectors. Available in 12 Volt (10 Watts/0.9 Amps/1 Nm/30 RPM) or optional 24 Volt (10 Watts/0.9 Amps/1 Nm/30 RPM). Can also be supplied with optional 12 Volt electronic ignition-lock motor (10 Watts/0.9 Amps/1 Nm/30 RPM).
-
Powder-coated black or beige aluminum weight bars with matching end caps.
-
Woven polyester sun-blocking screen as well as blackout privacy fabric that meet FMVSS-302 flammabillity standards.
