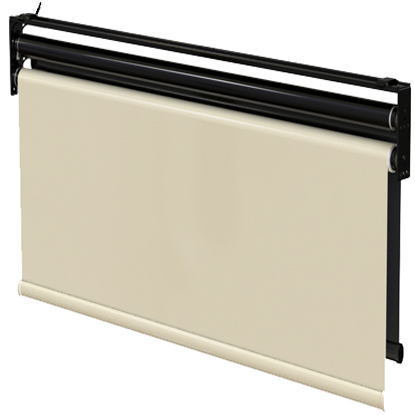

DRS-555CE
Motorized
Dual Roller Shades
Applications:
Double roller system to provide, at the push of a button, sun protection during day time as well as privacy at night time. Ideal for larger and hard to reach windows.
Description:
Electrically operated double roller shade system with integrated DC tubular motors. Available with hand-held remote transmitter for total comfort and for people with disabilities.
Specifications:
Double roller system to provide, at the push of a button, sun protection during day time as well as privacy at night time. Ideal for larger and hard to reach windows.
Description:
Electrically operated double roller shade system with integrated DC tubular motors. Available with hand-held remote transmitter for total comfort and for people with disabilities.
Specifications:

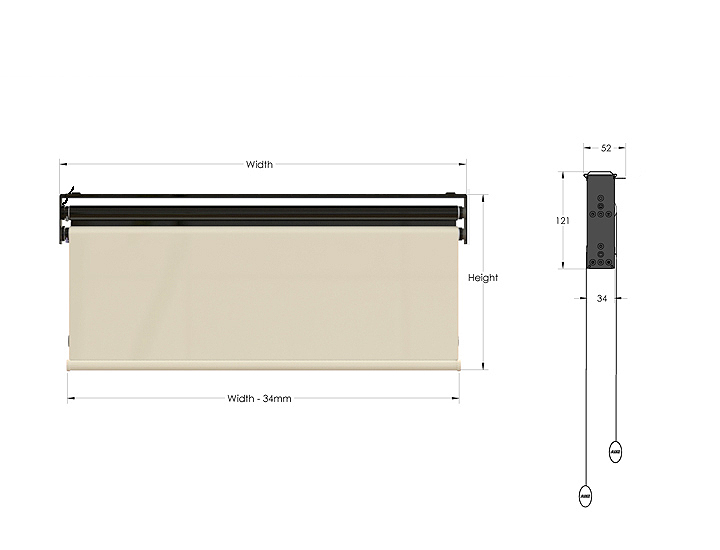

- Aluminum mounting rail, dimmension 40.5mm (1 5/8") wide x 8.4mm (5/16") high in standard mill finish or optional black powder-coated.
- Steel snap-in fastening brackets placed 20-30" o.c.
- Black powder-coated solid steel side-mounting brackets.
- Extruded aluminum fabric-roll-up tubes, made of 6063-T5 alloy.
- Electric 25mm (1") tubular motors with mechanical adjustable end limits and integrated motor cables with Molex connectors. Available in 12 Volt (10 Watts/0.9 Amps/1 Nm/30 RPM) or optional 24 Volt (10 Watts/0.9 Amps/1 Nm/30 RPM).
- Optional RF remote transmitter for individual and/or group control.
- Powder-coated black or beige aluminum weight bars with matching end caps.
- Woven polyester sun-blocking screen as well as blackout privacy fabric that meet FMVSS-302 flammabillity standards.
Thank you for reaching out
At vero eos et accusamus et iusto odio dignissimos ducimus qui blanditiis praesentium voluptatum deleniti atque corrupti quos dolores et quas molestias excepturi sint occaecati cupiditate non provident, similique sunt in culpa qui officia deserunt mollitia animi, id est laborum et.
- Aluminum mounting rail, dimmension 40.5mm (1 5/8") wide x 8.4mm (5/16") high in standard mill finish or optional black powder-coated.
- Steel snap-in fastening brackets placed 20-30" o.c.
- Black powder-coated solid steel side-mounting brackets.
- Extruded aluminum fabric-roll-up tubes, made of 6063-T5 alloy.
- Electric 25mm (1") tubular motors with mechanical adjustable end limits and integrated motor cables with Molex connectors. Available in 12 Volt (10 Watts/0.9 Amps/1 Nm/30 RPM) or optional 24 Volt (10 Watts/0.9 Amps/1 Nm/30 RPM).
- Optional RF remote transmitter for individual and/or group control.
- Powder-coated black or beige aluminum weight bars with matching end caps.
- Woven polyester sun-blocking screen as well as blackout privacy fabric that meet FMVSS-302 flammabillity standards.
