Applications:
Efficient, manually operated bug screen system for medium to large size rear entry doors in RVs and other passenger vans.
Description:

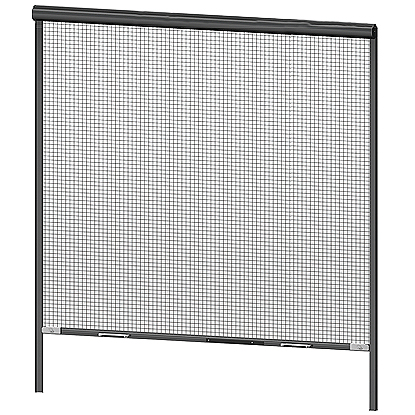

Manual roll-type screen system that serves as space-saving mosquito protection. Screen roller is inside a fully enclosed housing and features large side channels and a sturdy pull bar, all with brushes to prevent even small bugs from entering vehicle when door is open. Fabris sides are welded for strength and fitted with plastic rivets that prevent the screen from being pulled or pushed out of its side channels in wind conditions.
Spedifications:

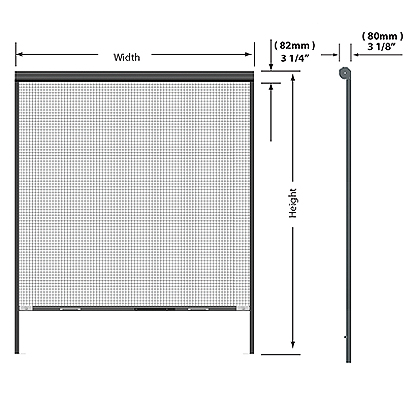

- Powder-coated white or black aluminum shade housing with elegant rounded front fascia, dimension 80mm x 80mm (3 1/8" x 3 1/8").
- Stainless steel snap-in brackets for ceiling installation.
- Clear anodized head rail tube made of aluminum 6063-T5 alloy with integrated heavy-duty lift spring for easy opening of screen.
- Powder-coated white or black aluminum side-channels with mounting lips and integrated black brushes; dimension 34mm x 15mm (1 1/4" x 1/2").
- Heavy-duty white or black powder-coated aluminum pull-rail with bottom channel to allow for brush; dimesion 39.5mm x 12.2mm (1 1/2" x 1/2").
- Woven PVC coated black polyester screen fabric with plastic rivets. Meets FMVSS-302 flamability standards.
