AMS-450

Motorized

Rear Entry Door Screen System

Applications:
Mosquito control at the push of a button. Electrically operated screen system for medium to large size rear entry doors in RVs and other passenger vans.

Description:

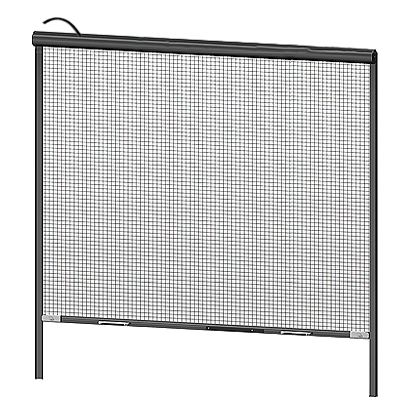

Motorized roll-type screen system that serves as space-saving mosquito protection. Screen roller is inside a fully enclosed housing and features large side channels and a heavy-duty weight bar, all with brushes to prevent even small bugs from entering vehicle when door is open.  Fabric sides are welded for strength and fitted with plastic rivets that prevent the screen from being pulled or pushed out of its side channels in windy conditions.

Specifications:

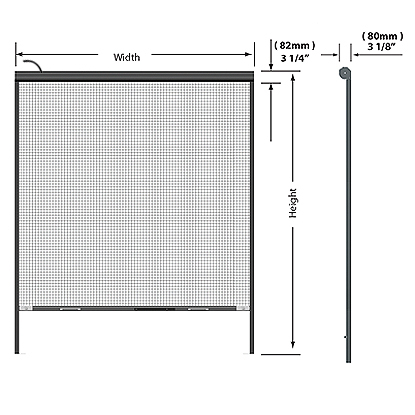

  • Powder-coated white or black aluminum shade housing with elegant rounded front fascia, dimension 80mm x 80mm (3 1/8"x 3 1/8").
  • Stainless steel snap-in brackets for ceiling installation.
  • Clear anodized head rail tube made of aluminum 6063-T5 alloy.
  • Electric 25mm (1") tubular motor with mechanical adjustable end limits and integrated motor cables with Molex connectors. Available in 12 Volt (10 Watts/0.9 Amps/1 Nm/30 RPM) or optional 24 Volt (10 Watts/0.9 Amps/1 Nm/30 RPM).
  • Available with optional RF remote control.
  • Powder-coated white or black aluminum side-channels with mounting lips and integrated black brushes; dimension 34mmx15mm (1 1/4" x 1/2").
  • Heavy-duty white or black powder-coated aluminum pull-rail with bottom channel to allow for brush; dimension 39.5mm x 12.2mm (1 1/2" x 1/2").
  • Woven PVC coated black polyester screen fabric with plastic rivets. Meets FMVSS-302 flammabillity standards.

Specifications

  • Powder-coated white or black aluminum shade housing with elegant rounded front fascia, dimension 80mm x 80mm (3 1/8"x 3 1/8").
  • Stainless steel snap-in brackets for ceiling installation.
  • Clear anodized head rail tube made of aluminum 6063-T5 alloy.
  • Electric 25mm (1") tubular motor with mechanical adjustable end limits and integrated motor cables with Molex connectors. Available in 12 Volt (10 Watts/0.9 Amps/1 Nm/30 RPM) or optional 24 Volt (10 Watts/0.9 Amps/1 Nm/30 RPM).
  • Available with optional RF remote control.
  • Powder-coated white or black aluminum side-channels with mounting lips and integrated black brushes; dimension 34mmx15mm (1 1/4" x 1/2").
  • Heavy-duty white or black powder-coated aluminum pull-rail with bottom channel to allow for brush; dimension 39.5mm x 12.2mm (1 1/2" x 1/2").
  • Woven PVC coated black polyester screen fabric with plastic rivets. Meets FMVSS-302 flammabillity standards.

Applications

Recreational Vehicles

RV OEMs select sun and mosquito protection for both practical and aesthetic reasons. AMS offers a variety of styles, colors, and vehicle-specific fittings to meet your needs.

Learn More

Related Products

I want to thank AMS for the OUTSTANDING customer service you recently provided to me. I attempted to install a window blind motor and ran into problems and called for help. Fortunately for me I spoke with Ewa Zajch who determined I was missing a needed module. She emailed me a description of the module, part numbers and copies of instructions to install it. After obtaining the module, I was unable to figure out how to set the limits of the window blind movement. Once again good fortune shined on me when I contacted Cindy Jardine. Cindy followed up Ewa’s effort by sending me additional printed instructions, your web site with all your publications, and her personal instructions on how to fix my problem.

In my last email to Cindy, I told her I still couldn’t set the blind movement limits. To my surprise a Technician (I don’t recall his name, but there must be a record of his call) called me and personally walked me through the procedures.

Throughout all of this I was and am still now overwhelmed with the personal attention I was given and the professionalism and sympathetic attitudes of these fine people. You must be very proud of them because I’m guessing I am not the first person who has complemented them.

I am very grateful for the assistance each provided me. I hope there is some way that you can reward these fine people for their outstanding work.

Dennis Campbell

Frequently Asked Questions

See all Frequently Asked Questions
You will find them on our website under “Where To Buy”.
If your product is still under warranty, contact the service department of your vehicle’s manufacturer. If your product is no longer under warranty, contact your nearest authorized AMS renovation dealer, whom you find on our website under “Where to buy” and look up under your industry section.
Trying to change shades yourself is not recommended and should be done by an authorized service dealer as you may otherwise forfeit the warranty on the product. However, after the warranty has expired and you feel expert enough in this field, then you could contact AMS through our website and request an installation manual as well as a motor user guide, if applicable, on how to set limit stops. Important: windshield shades should always be installed by a trained technician to avoid any safety issues.
The closer the weave (expressed in openness) the better the solar protection. A 5% open screen gives a better protection against solar and UV rays than e.g. a 30% open screen. At the same time the visibility gets more limited the denser a fabric is. However, colour plays an equally important role in protecting you from the sun! A darker screen allows a better view during daytime and is also better against glare; dark colours will, however absorb more heat than lighter colours. AMS will be happy to help you, either directly or through its dealers, to make the proper screen selection as so many aspects need to be considered.
