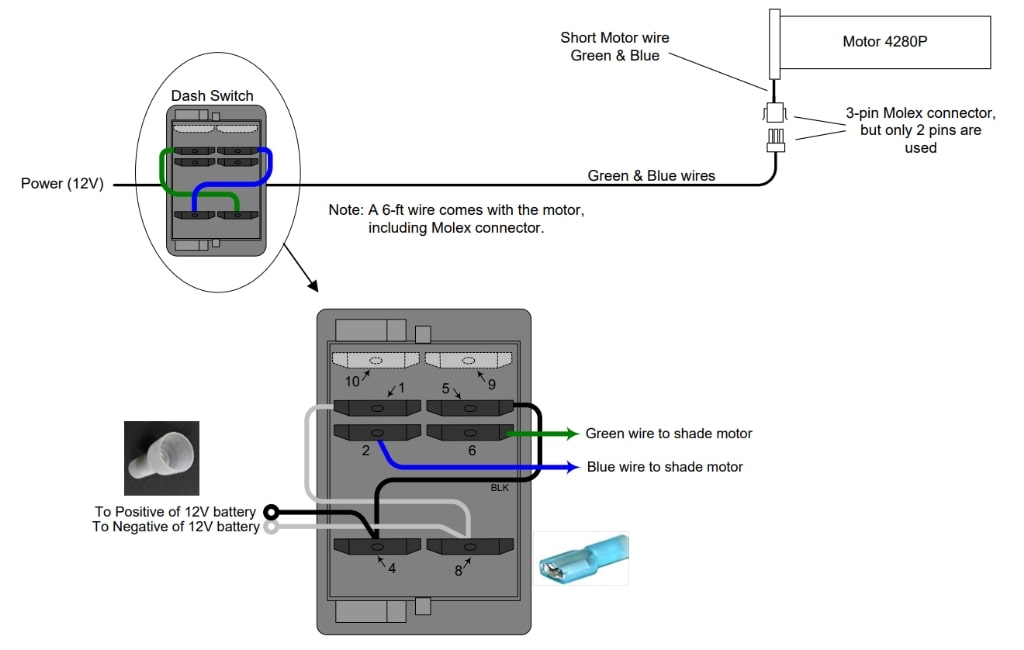

Wiring of Motors 4280 and 4280P with Mechanical Limits (2-wires)

On some coaches the color of some wires may be different than shown below; for any questions regarding this, either contact your OEM’s service department or Auto-Motion Shade technical services. The type of switch is DPDT switch.

Note: The wiring for 1stgeneration motors 4280 with mechanical limits is exactly the same, but does not include the Molex connector.
