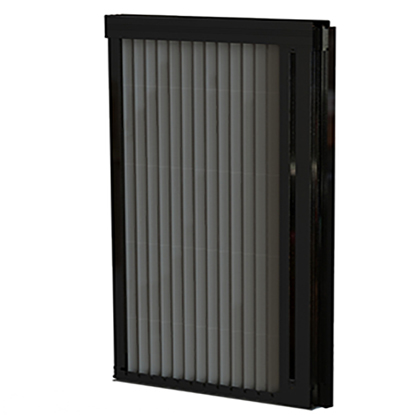

SDS-800

Manual

Entry Door Systems

Applications:
Compact framed screen door system for Class B and C motorhomes and other vans that prevents mosquitos from entering vehicle while entry door is open.

Description:
Slim space saving sliding screen door allows maximum opening due to small pull rail and fabric stacking. Patented operating mechanism permits easy removal and re-fitting of a damaged screen door by end user. Flat, easy-to-clean vinyl bottom guide can be stepped on and prevents dust or dirt collection. Straight, non-curved applications only.

Specifications

  • Powder-coated black aluminum U-shaped top gliding channel, dimmensions 25mm (1") wide x 20mm (3/4") high.
  • Grey or black vinyl bottom guide, 33mm (1 1/4") in width x 6mm (1/4") in height.
  • Powder-coated black aluminum wall mount with inegrated delrin mounting clips.
  • Removable powder-coated black aluminum stationary rail.
  • Narrow black powder-coated aluminum pull-rail, 32.5mm (1 1/4") in width to allow compact shade stacking.
  • Braided black shade cords with integrated cord-tensioners.
  • Grey or black brush integrated into black vinyl pull-rail cover allows gap-free screen door closure.
  • Woven 15mm pleated black polyester screen fabric. Meets FMVSS-302 flammabillity standards.
